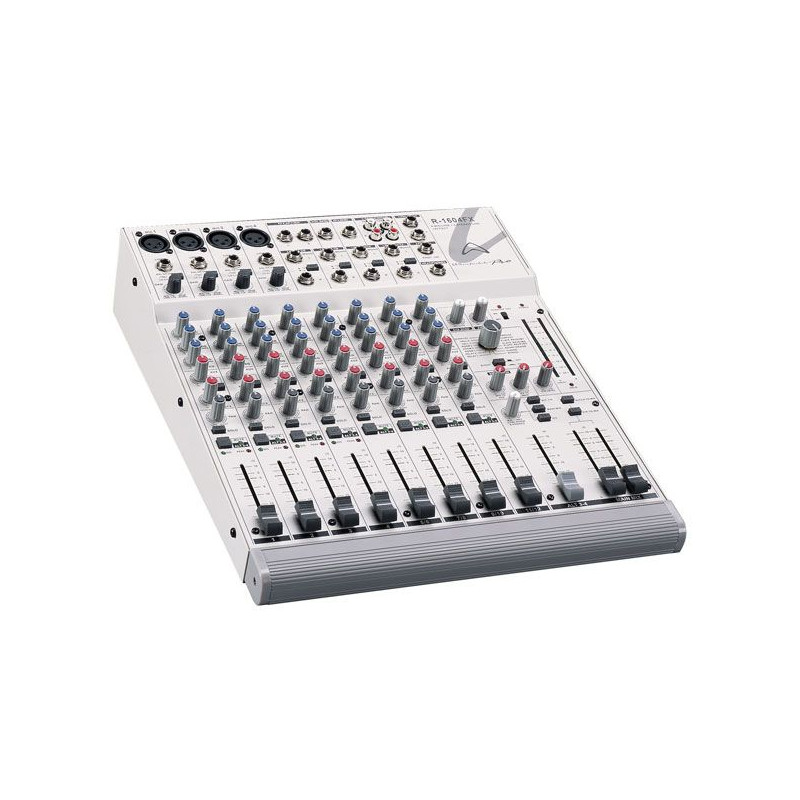

(Used) Wharfedale Pro R1604 Passive Mixer

(Used) Wharfedale Pro R1604 Passive Mixer

The R1604 features 4 low noise, high headroom low impedance mic inputs for use with balanced or low impedance microphones or external equipment with XLR connectors. It has four balanced/unbalanced high impedance mono line inputs for use with high level signals with phoe plug connectors. The Stereo Input channels on the R1604 features two balanced line level inputs with 1/4'' jack sockets for left and right signals. Features 4 balanced/unbalanced mono line input (R1604) 4 low noise, high headroom XLR mic inputs 4 pairs of balanced/unbalanced stereo line inputs 48V global phantom power 3 band EQ in each input channel (12KHz, 2.5KHz, 80Hz) 75Hz, 18dB/octave low cut filter on channels 1-4 PFL/SOLO and Mute/ALT 3-4 on all channels ALT 3-4 extra stereo bus &amp 2 stereo EFX return EFX to Main, ALT 3-4 and AUX 1 switch Balanced inputs and outputs Peak and signal LED's on mono channel Two AUX send, Pre and Post fader switch on AUX 1 Separate main mix, control room and headphone outputs 2 track inputs assignable to main mix, control room/headphone outputs Highly accurate 10 segment Bargraph meters High quality 60mm faders
